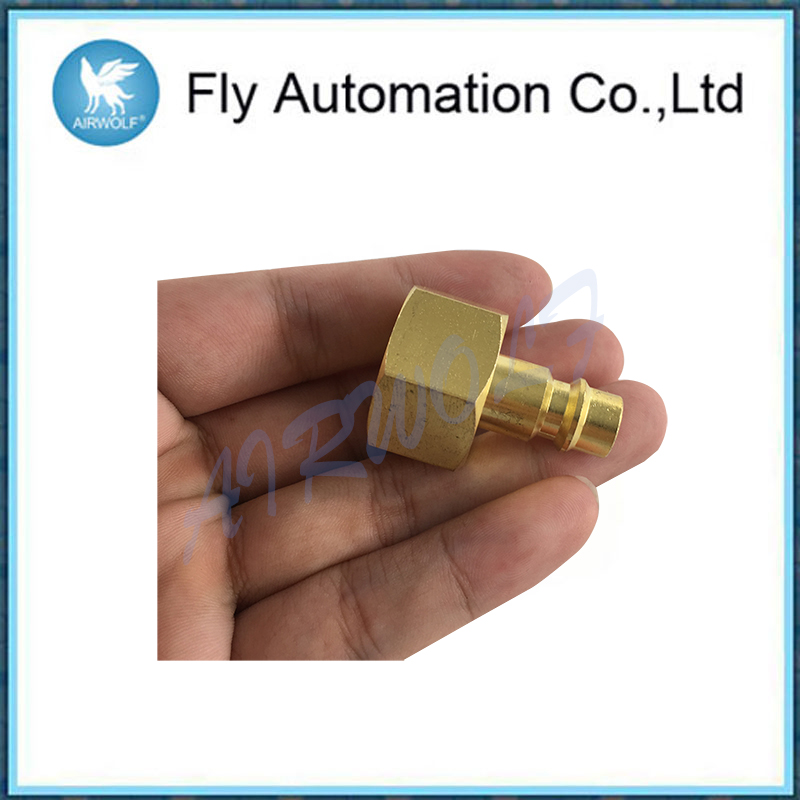

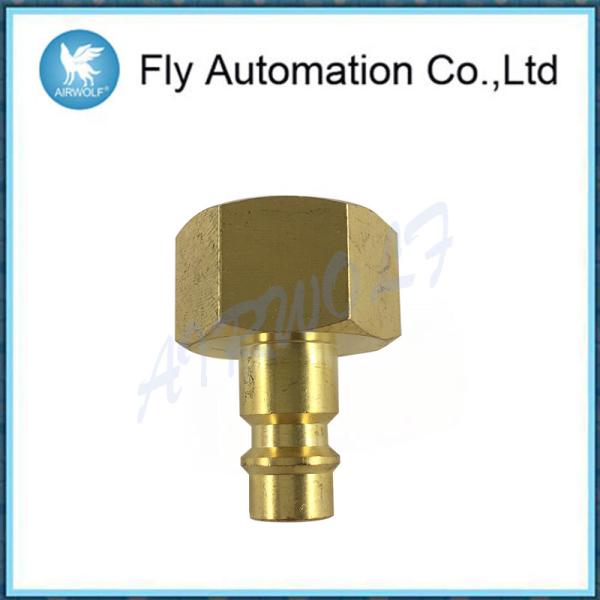

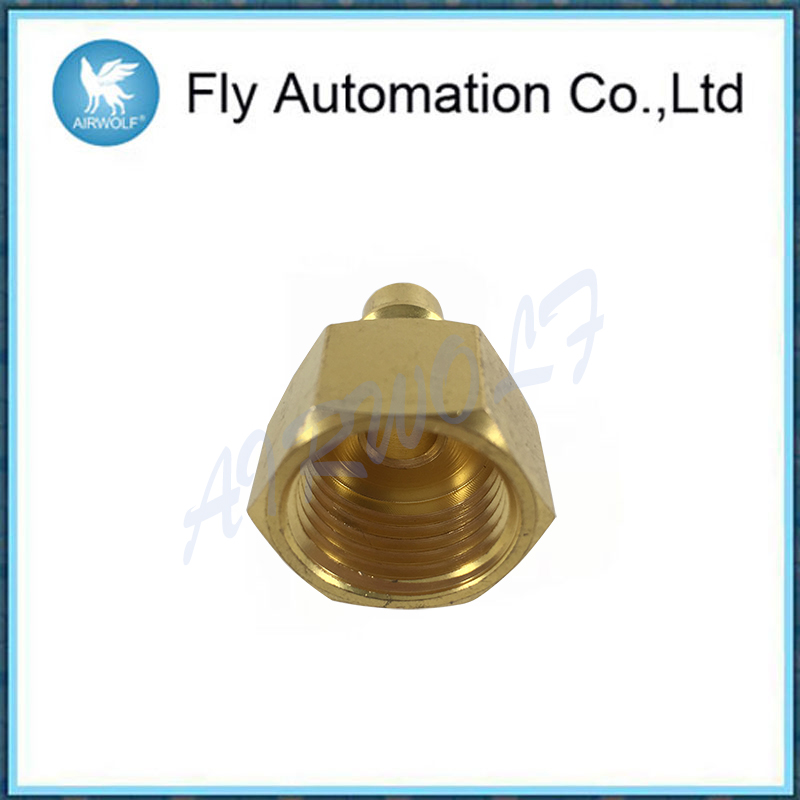

G1/2" 22SF IW21 MXX Air Connectors Fitting Coupler Brass Quick Release Coupling Plug
Technical Description
Robust brass coupling. Nu-merous connection options.
Preferred application: com-pressed air technology and water connections.
Advantages
Single handed operation.
Plug design optimised through greater insert depth.
Working Pressure
PB = 35 bar, maximum
static working pressure with safety factor of 4 to 1.
Working Temperature*
-20°C up to +100°C (NBR)
-40°C up to +120/150°C (EPDM)
-15°C up to +200°C (FKM)
depending on the medium.
*At a temperature below
-20°C and above +100°C
special seals are available on request.
| Series | Model | Size | Type |
| 14KA | 14KA AW13 MPX | G1/4" | Coupling |
| 14KA AW17 MPX | G3/8" | Coupling |
| 14KA AW21 MPX | G1/2" | Coupling |
| 14KA | 14KA IW13 MPX | G1/4" | Coupling |
| 14KA IW21 MPX | G1/2" | Coupling |
| 22SF | 22SF AK13 MXX | G1/4" | Plug |
| 22SF AK17 MXX | G3/8" | Plug |
| 22SF AK21 MXX | G1/2" | Plug |
| 22SF | 22SF TF08 MXX | 8mm | Plug |
| 22SF TF10 MXX | 10mm | Plug |
| 22SF | 22SF IW13 MXX | G1/4" | Plug |
| 22SF IW21 MXX | G1/2" | Plug |
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
Packaging shipping
1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
2. By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
Serves time
0:00 - 23:59
From Monday to Sunday
