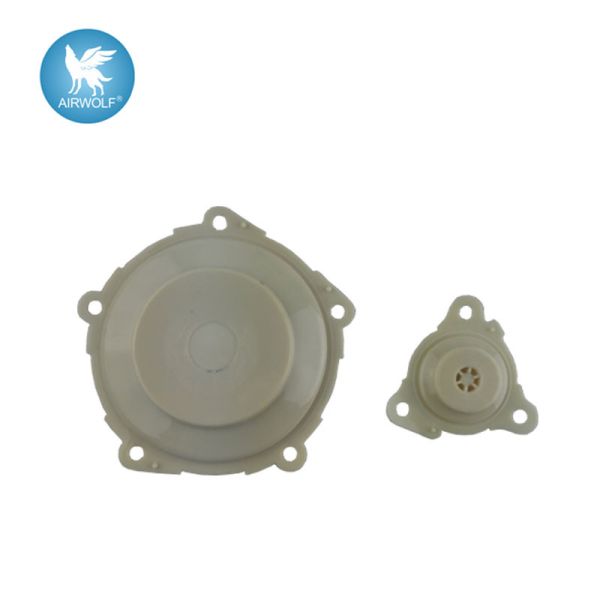

Norgren 1261402 TPE diaphragm for pneumatic pulse valve 8296600 G1 1/2"
Series 82960
1. 2/2-way valves DN 20 to DN 65
2. For air
3. Indirectly solenoid actuated
4. Diaphragm valves
5. Internal thread G 3/4 to G 2 1/2 or 3/4" NPT to 2 1/2" NPT
6. Operating pressure: 0.4 to 8 bar
Ordering Code: 1261402
Drawing
Description (standard valve)
Switching function: normally closed
Flow direction: determined
Fluid temperature: -40 °C up to max. +85 °C
Ambient temperature: -20 °C up to max. +85 °C
Mounting position: as required, preferably with solenoid vertical on top
Material
Body: Aluminium
Seat seal: TPE
Internal parts: TPU
Features
1. High flow rate
2. All internal components captive
3. Functional compact design
4. Solenoid interchangeable without tools
5. Integrated silencer
6. One-piece diaphragm for longer life
Drawing legend
| Connection size G | H | H1 | L | L1 |
| G 3/4 | 105.5 | 83 | 95 | 50 |
| G 1 | 105.5 | 83 | 95 | 50 |
| G 1 1/2 | 166.0 | 136 | 135 | 70 |
| G 2 | 190.5 | 149 | 170 | 95 |
| G 2 1/2 | 205.5 | 160 | 170 | 95 |
| Index | Description |
| 101 | Valve body |
| 102 | Valve cover |
| 103 | Diaphragm |
| 104 | Allen head screw |
| 105 | Diaphragm |
| 106 | Valve cover |
| 107 | Silencer |
| 108 | Silencer housing |
| 109 | Allen head screw |
| 400 | Solenoid |
| 702 | Plunger |
| 705 | Pressure spring |
| 706 | Pressure spring |
| 707 | Silencer |
| 1400 | Electrical connector (included) |
Service kits
| For valves with solenoid 8171 and seal TPE | Part number |
| 8296300 | 1261253 |
| 8296400 | 1261253 |
| 8296600 | 1261402 |
| 8296700 | 1268274 |
| 8296800 | 1268274 |
Photos Show:
1 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping
2 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
3 . Integral pilot operated valves satisfy all relevant EC directives
4 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
5 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
